Thoracic Aortic Aneurysm (TAA) Rupture Risk Analysis

Our foundation is built on a deep pedigree of research published in leading medical and engineering journals. We bridge the gap between engineering and medicine to solve the most complex challenges in structural heart disease through advanced constitutive modeling, patient-specific simulation, and structural biomechanics.

Aneurysm Risk & Artificial Intelligence (AI)

Patient-specific biomechanical risk assessment beyond diameter

Prevalence & The Aging Population: While Abdominal Aortic Aneurysms (AAA) affect 6-9% of adults over 65, TAA represents a more specialized and lethal threat. Its incidence peaks sharply between ages 65 and 70, affecting up to 0.5% of the general population — many of whom remain undiagnosed. [Wanhainen et al., 2019] [Olsson et al., 2006]

The Silent Threat: TAA is notoriously asymptomatic, often remaining undetected until a catastrophic rupture or dissection occurs. This "silent" progression makes it a Top 20 cause of death in the United States. [Elefteriades & Farkas, 2010]

The 5.5 cm Failure: Current clinical guidelines rely almost exclusively on a 5.5 cm diameter threshold for surgical intervention. However, research shows that a significant percentage of patients experience life-threatening dissections or ruptures below this threshold. [Pape et al., 2007]

The Cardio4D Solution: Relying on diameter alone is insufficient because it ignores the underlying physics of the aortic wall. Cardio4D's biomechanical risk modeling fills this unmet need by quantifying peak wall stress, providing a precise, patient-specific metric that identifies high-risk patients who would otherwise be missed by traditional measurements.

Aortic Wall Stress Analysis

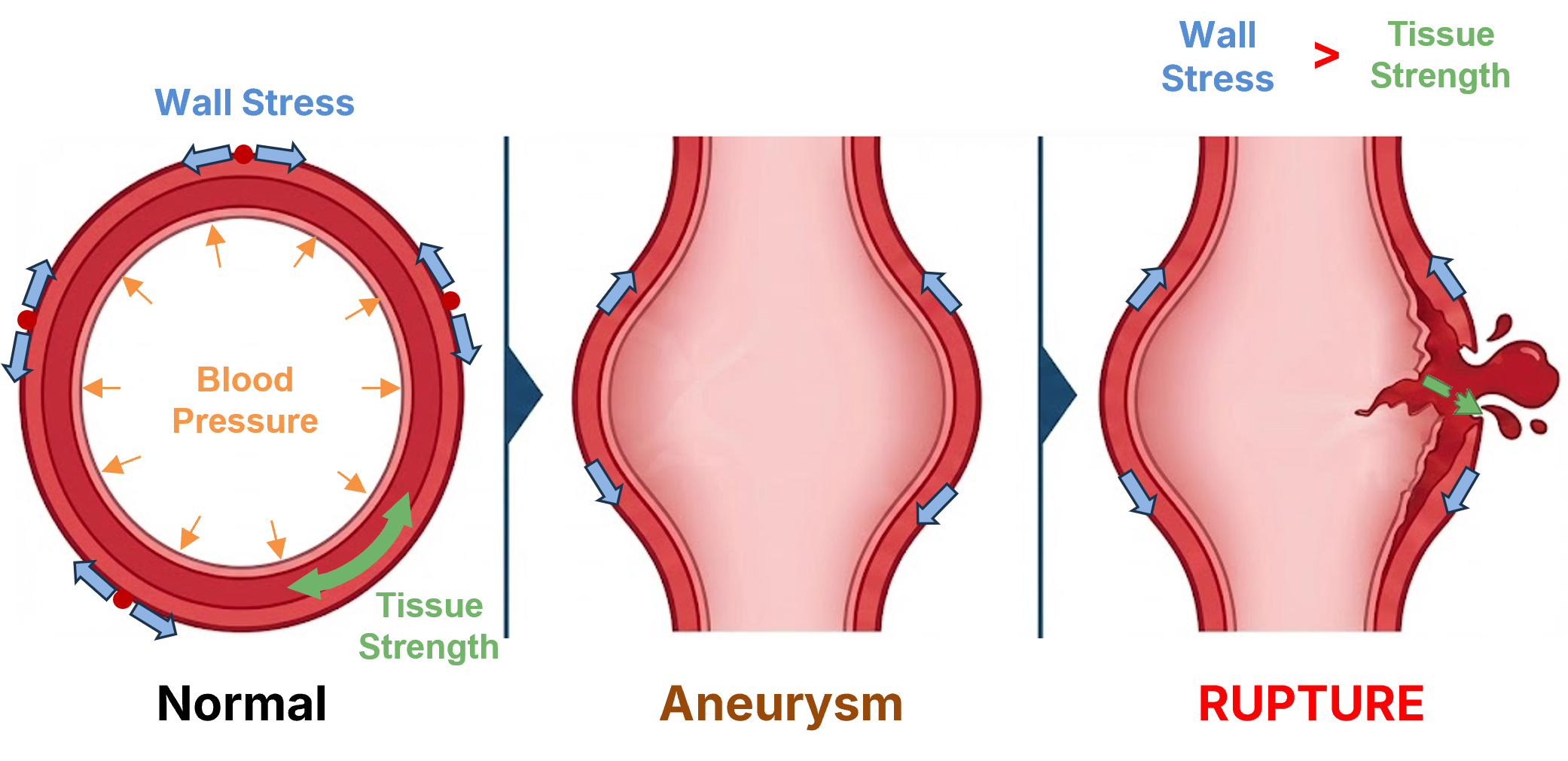

Aortic wall stress distribution

Aortic wall stress distribution — insight into rupture risk beyond diameter

Aortic wall stress distribution provides insight into rupture risk beyond diameter. The rupture/dissection mechanism occurs when wall stress exceeds tissue strength. Our patient-specific risk assessment incorporates geometry and biomechanics.

Validated Predictive Power

Patient-specific aneurysm analysis

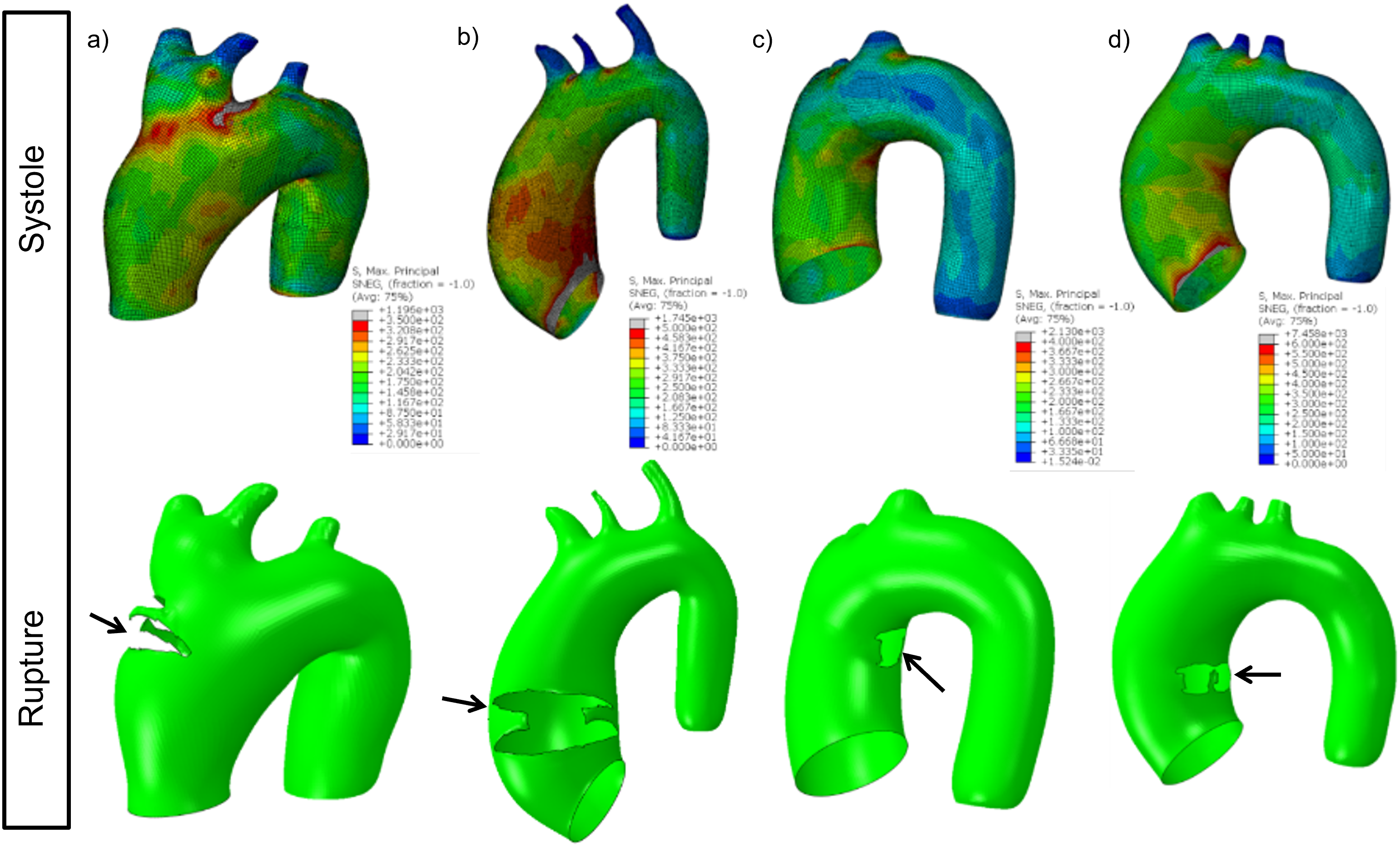

Patient-specific ascending aortic aneurysm analysis

Cardio4D delivers a risk assessment engine grounded in clinical validation. By using the peak wall stress (PWS) thresholds established in peer-reviewed studies, the platform can flag "high-stress/small-diameter" patients who are currently missed by standard care guidelines. We provide the methodology for transforming patient-specific CT data into high-fidelity meshes, ensuring that the 3D models used for surgical planning are not just visualizations, but accurate biomechanical twins of the patient's heart. [Martin, Sun & Elefteriades, 2015] [Pham et al., 2013]

Machine Learning Surrogate for FEA

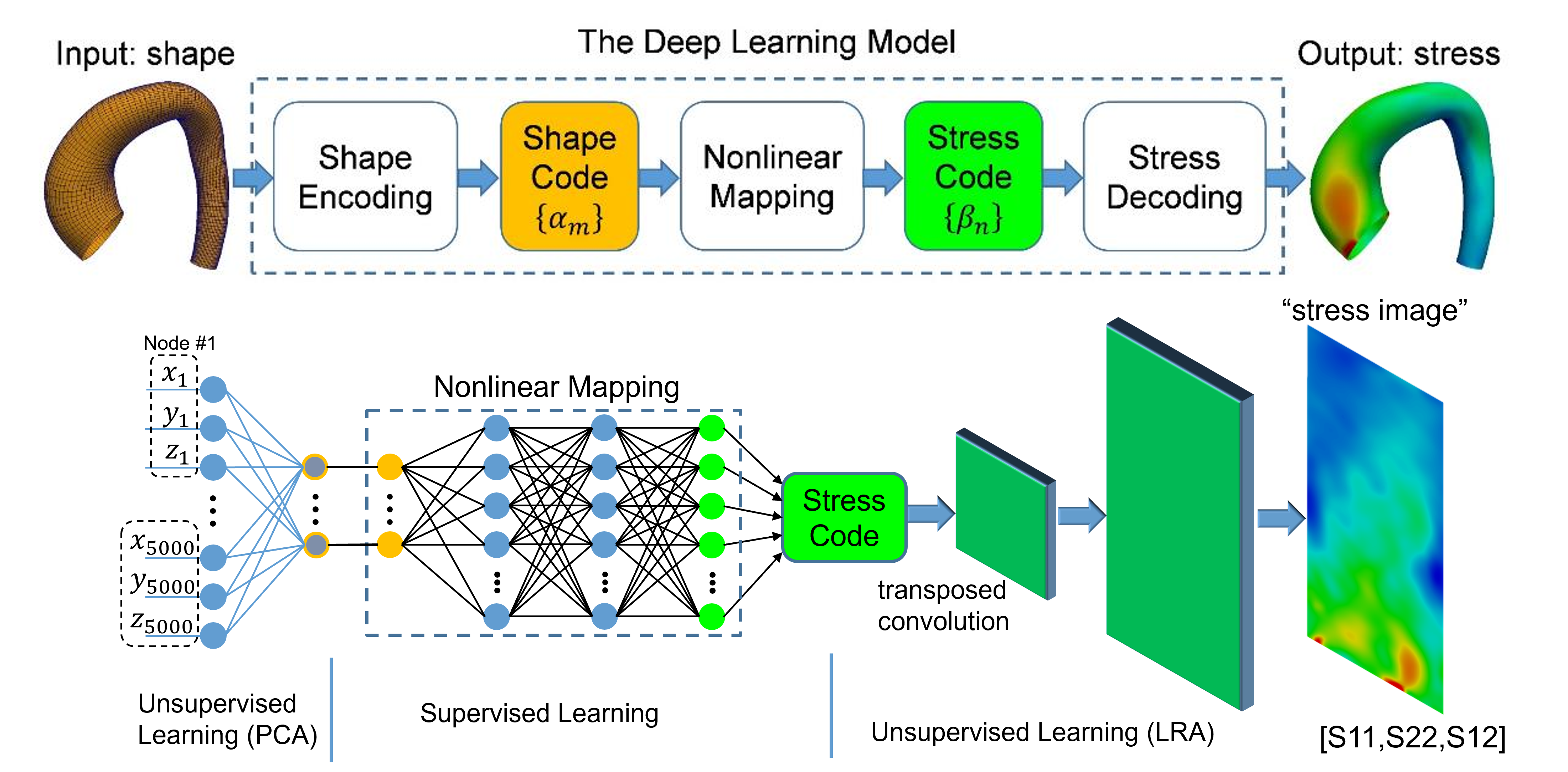

ML-FEA surrogate model

Deep learning surrogate for wall stress prediction

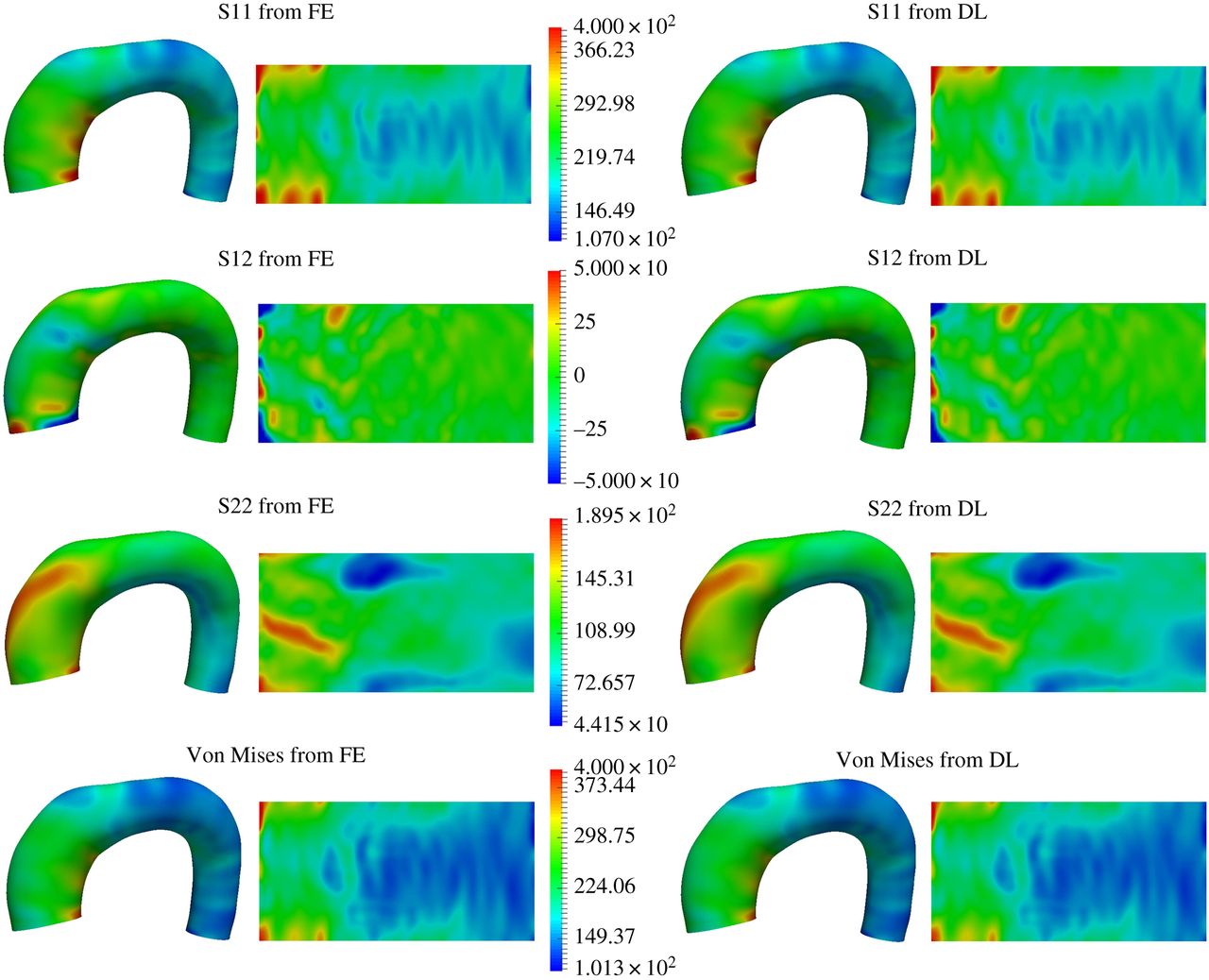

ML vs FEA accuracy comparison — Case 1

ML vs FEA accuracy comparison — Case 1

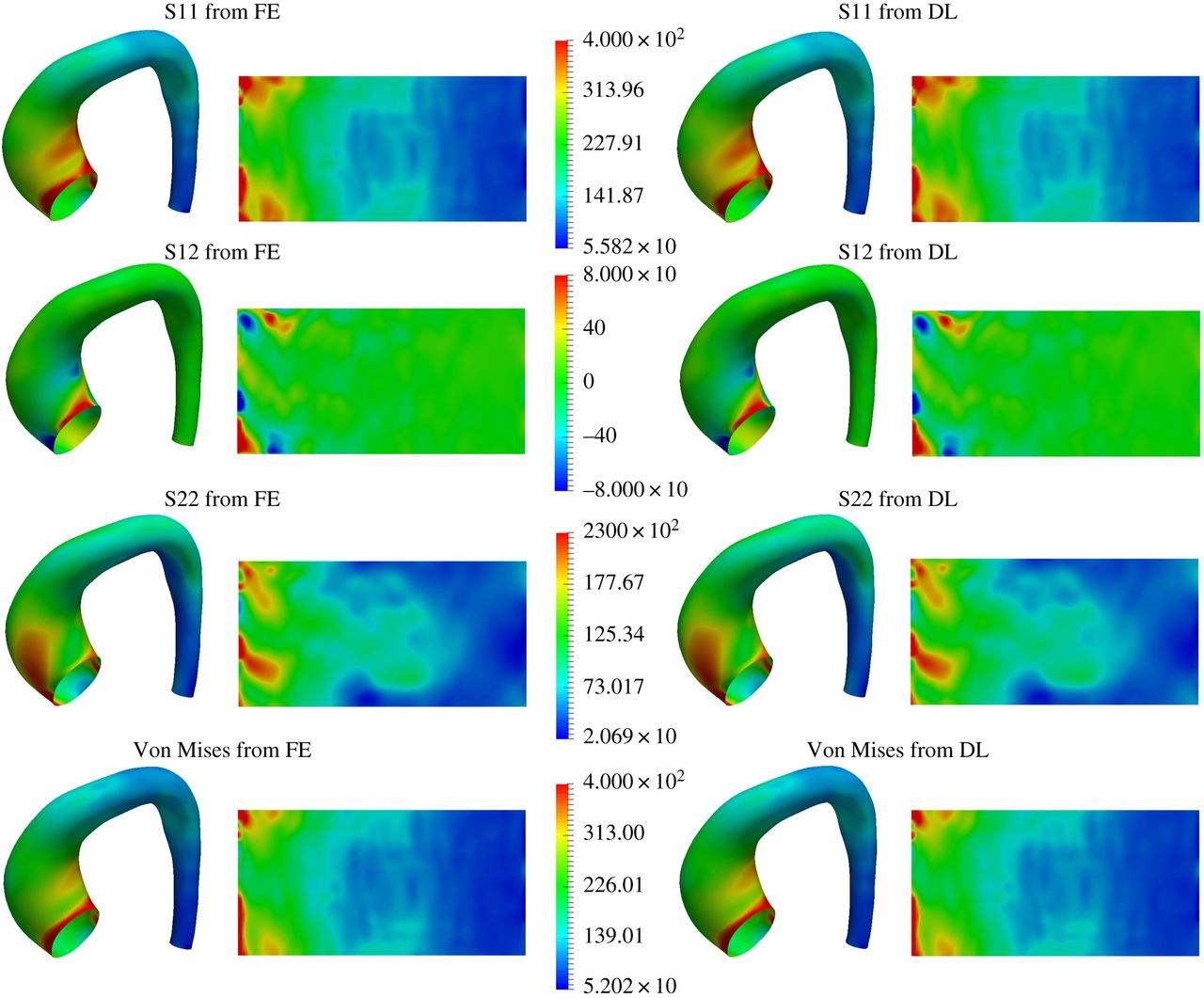

ML vs FEA accuracy comparison — Case 2

ML vs FEA accuracy comparison — Case 2

It has been rigorously shown that advanced deep learning models can successfully replace traditional, time-consuming engineering simulations with near-instantaneous predictions. By achieving over 95% accuracy in estimating complex arterial wall stress compared to gold-standard Finite Element Analysis, Cardio4D establishes the scientific proof of concept for a real-time diagnostic engine. These findings confirm that high-fidelity biomechanical insights can be delivered at clinical speeds without compromising the mathematical precision required for life-critical surgical planning. [Liang et al., 2018]

AI-Powered Biomechanical Analysis

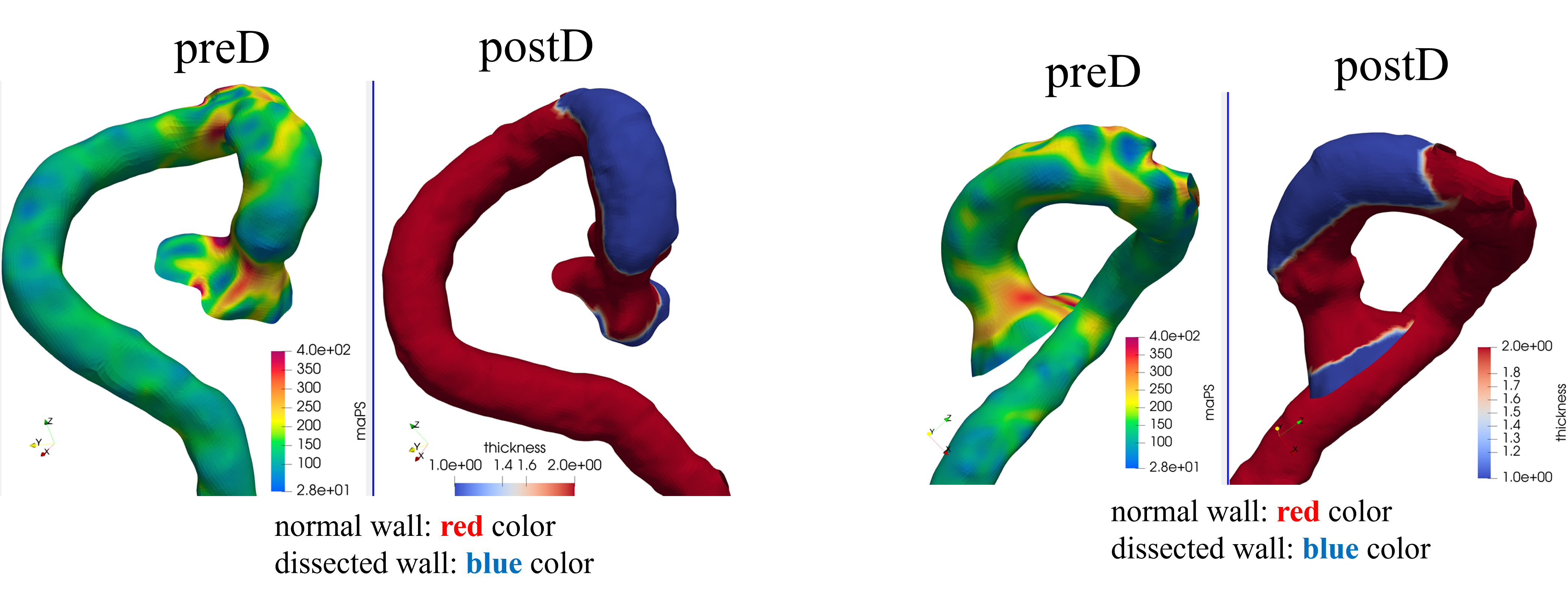

Pre/post analysis — Case 1

Pre/post stress analysis — Case 1

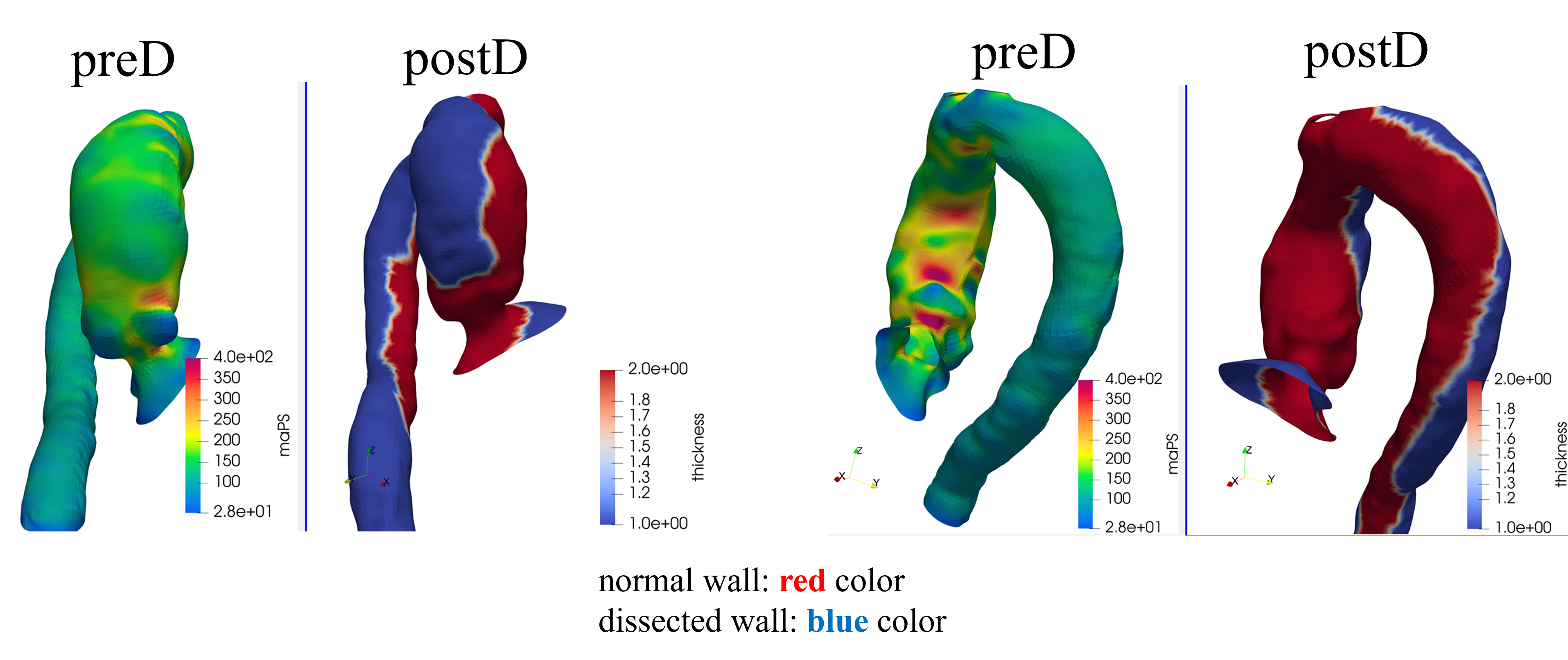

Pre/post analysis — Case 2

Pre/post stress analysis — Case 2

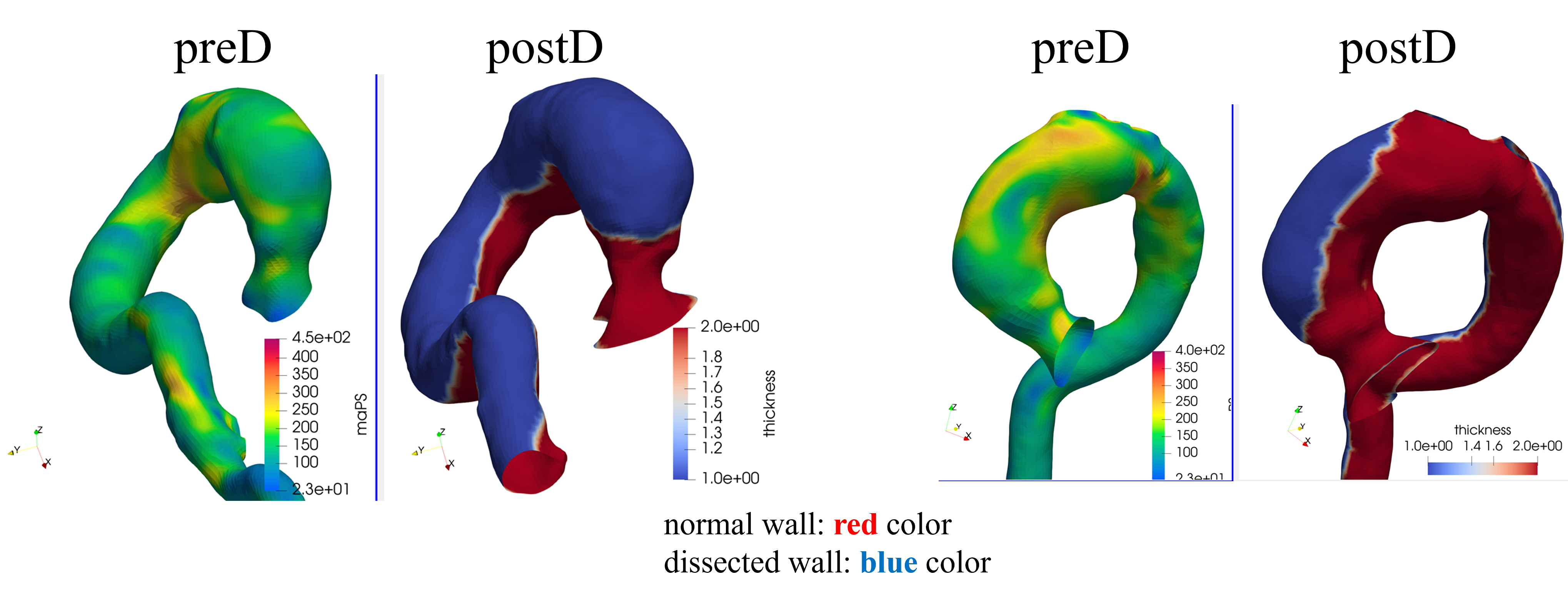

Pre/post analysis — Case 3

Pre/post stress analysis — Case 3

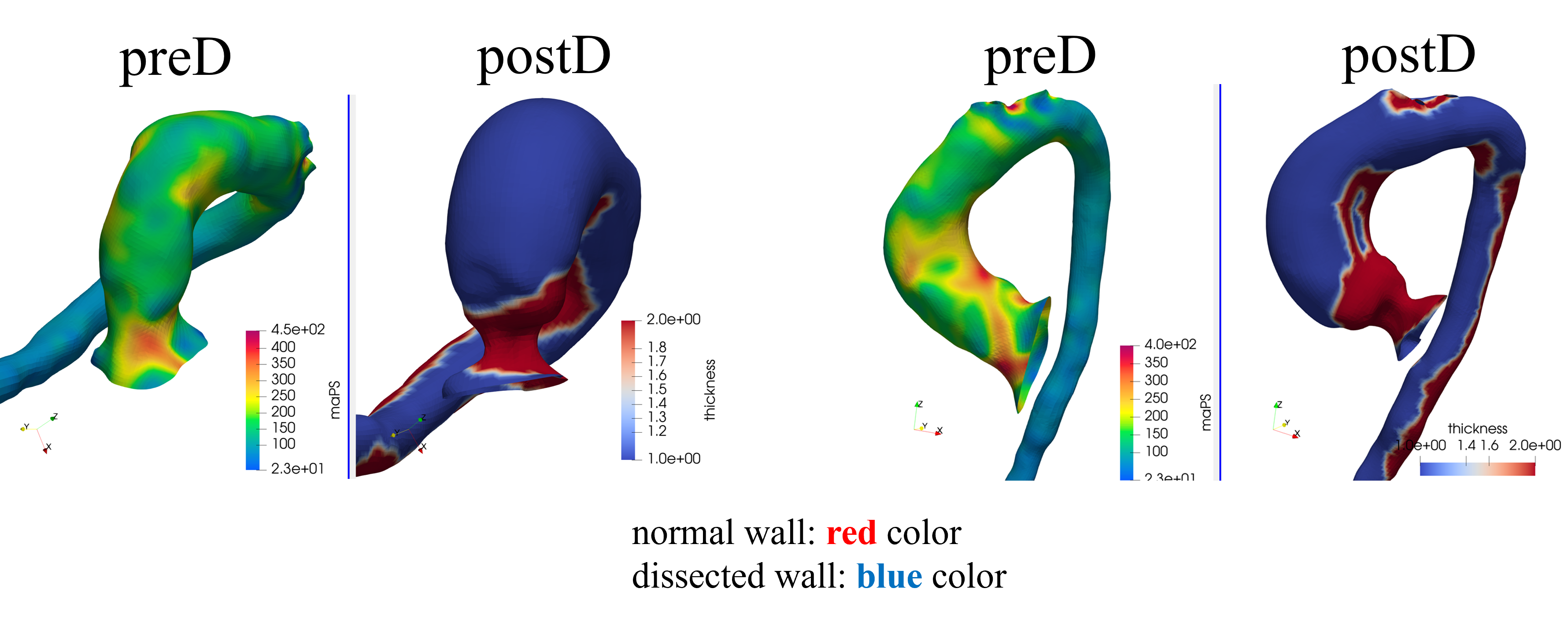

Pre/post analysis — Case 4

Pre/post stress analysis — Case 4

Cardio4D leverages PyTorch-FEA (DNN-FEA integration), a breakthrough framework that integrates traditional finite element analysis with automatic differentiation to enable high-speed, gradient-based optimization of biomechanical models. By utilizing the Autograd engine, the platform performs seamless, real-time estimation of material parameters and wall stress distributions directly from clinical imaging data. Unlike traditional solvers that require hours of manual iteration, Cardio4D's AI-powered inverse modeling engine "back-calculates" a patient's specific aortic tissue stiffness in seconds, providing a truly personalized rupture risk assessment. [Liang et al., 2018] [Liang et al., 2023]

Summary

Cardio4D: Redefining Cardiovascular Precision

Cardio4D provides the high-performance computational engine that replaces slow, manual engineering with automated, AI-driven workflows. By fusing Artificial Intelligence with Finite Element Analysis (FEA), we deliver detailed biomechanical risk reports in near real-time, facilitating immediate point-of-care decisions when every second counts.

Beyond Diameter

The implementation of Statistical Shape Modeling (SSM) and our proprietary PyTorch-FEA integration enables the platform to move beyond antiquated, diameter-based measurements. Cardio4D provides a high-fidelity classification of rupture risk based on the patient's unique, four-dimensional aortic geometry and in-vivo tissue stiffness.

Research to Reality

This deep pedigree of validated research transforms Cardio4D from a rigorous academic tool into a scalable, AI-powered diagnostic platform. We are not just visualizing anatomy; we are quantifying the physics of human life — redefining the standard of cardiovascular care and bringing world-class biomechanical insight to every surgical suite.
